IAME 175 SSE engine



IAME 175 SSE

$5,695.00 $4,595.00

Qty

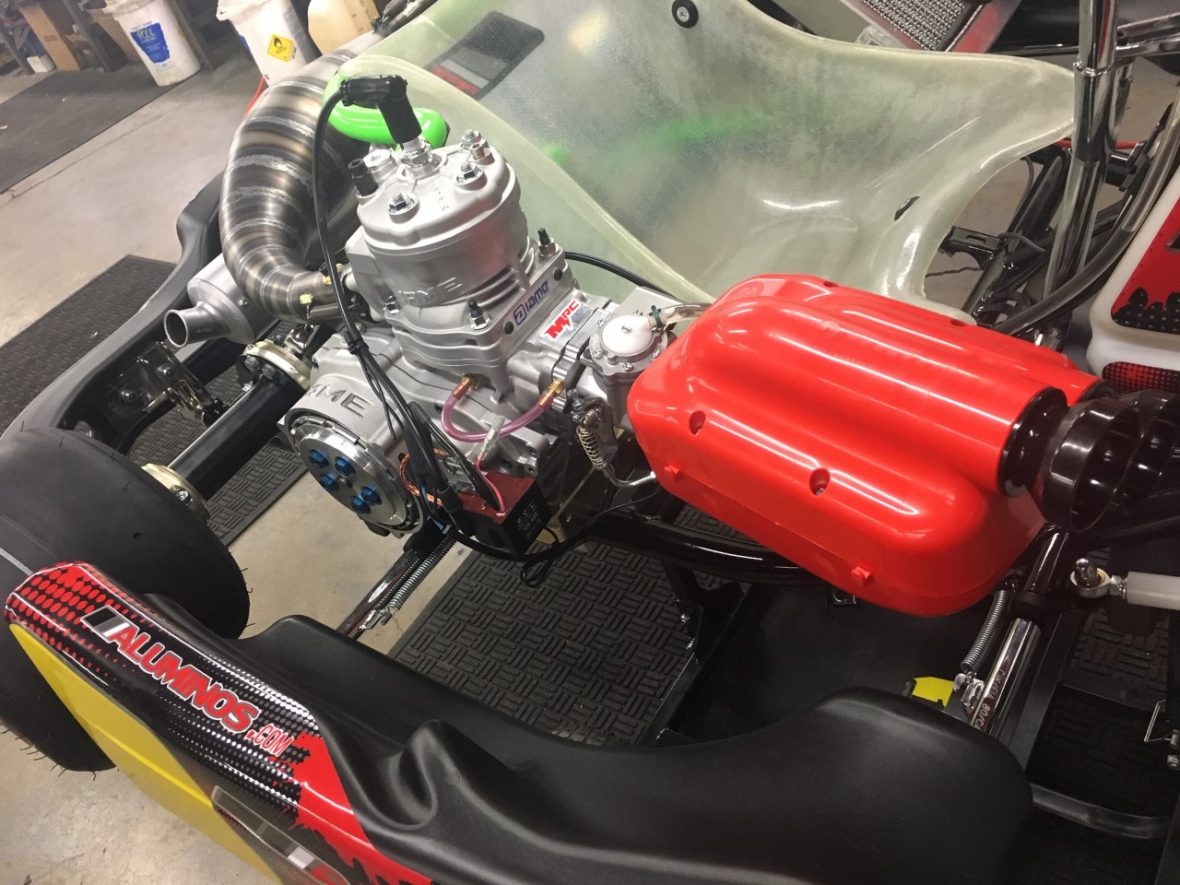

The IAME 175 SKUSA Shifter Engine Spec. US is specifically engineered around the needs of the American shifter-kart drivers, providing the ultimate driving experience by showcasing a displacement of 175cc. The ideal solution for all drivers wishing to race a top level shifter engine with the benefits and the features of stock class engines. The “Spec. US” combines the performance of the very best KZ engines while offering increased performance, reliability, consistency and ease of use. Provided with the new specifically developed Tillotson HB-15A diaphragm carburetor, an absolute innovation on shifter-kart engines and manufactured with enhanced components to increase longevity and reduce service costs, this untamable beast is ready to tear the asphalt apart.

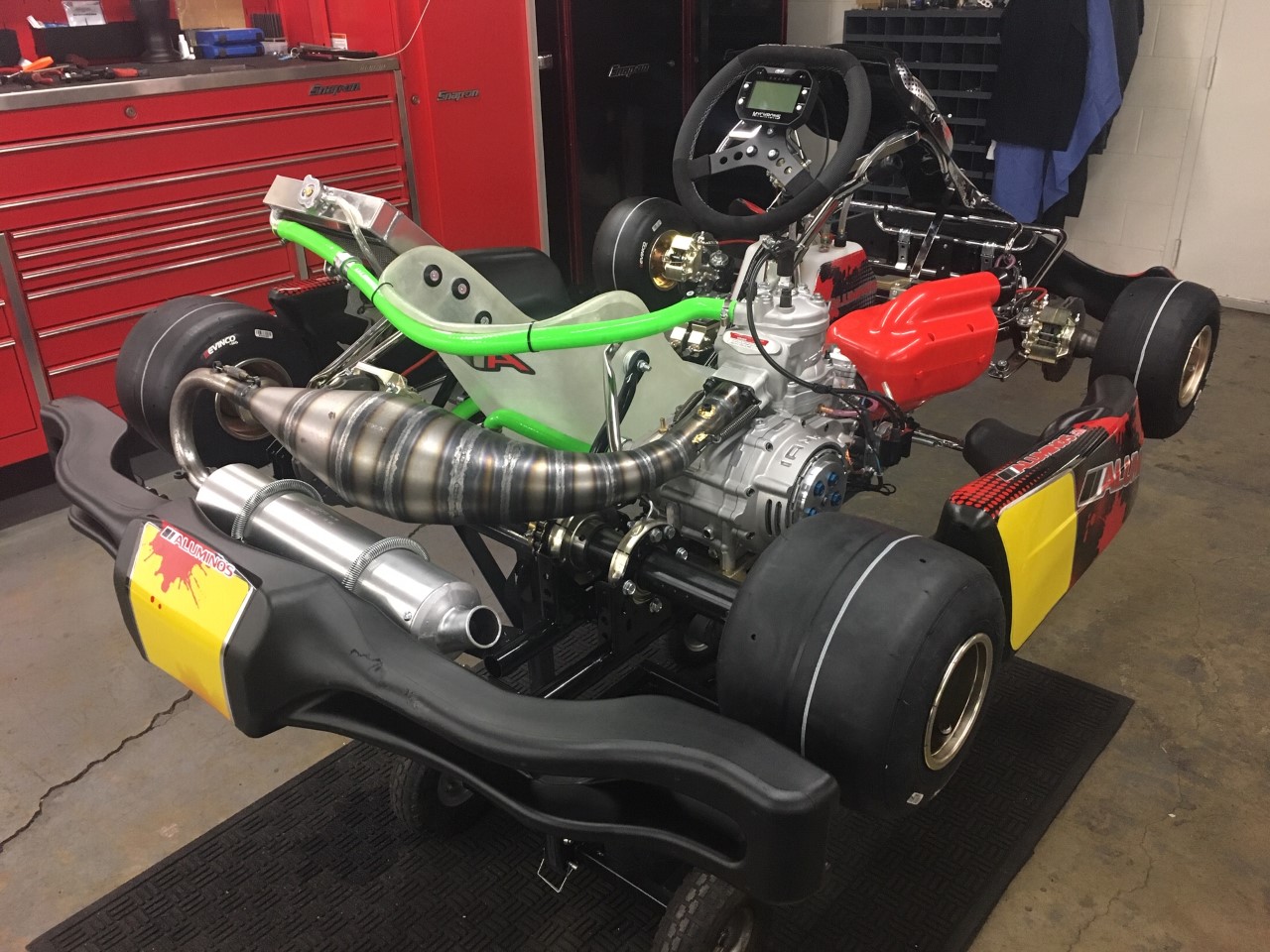

This Engine package comes race-ready for SKUSA competition. The package includes:

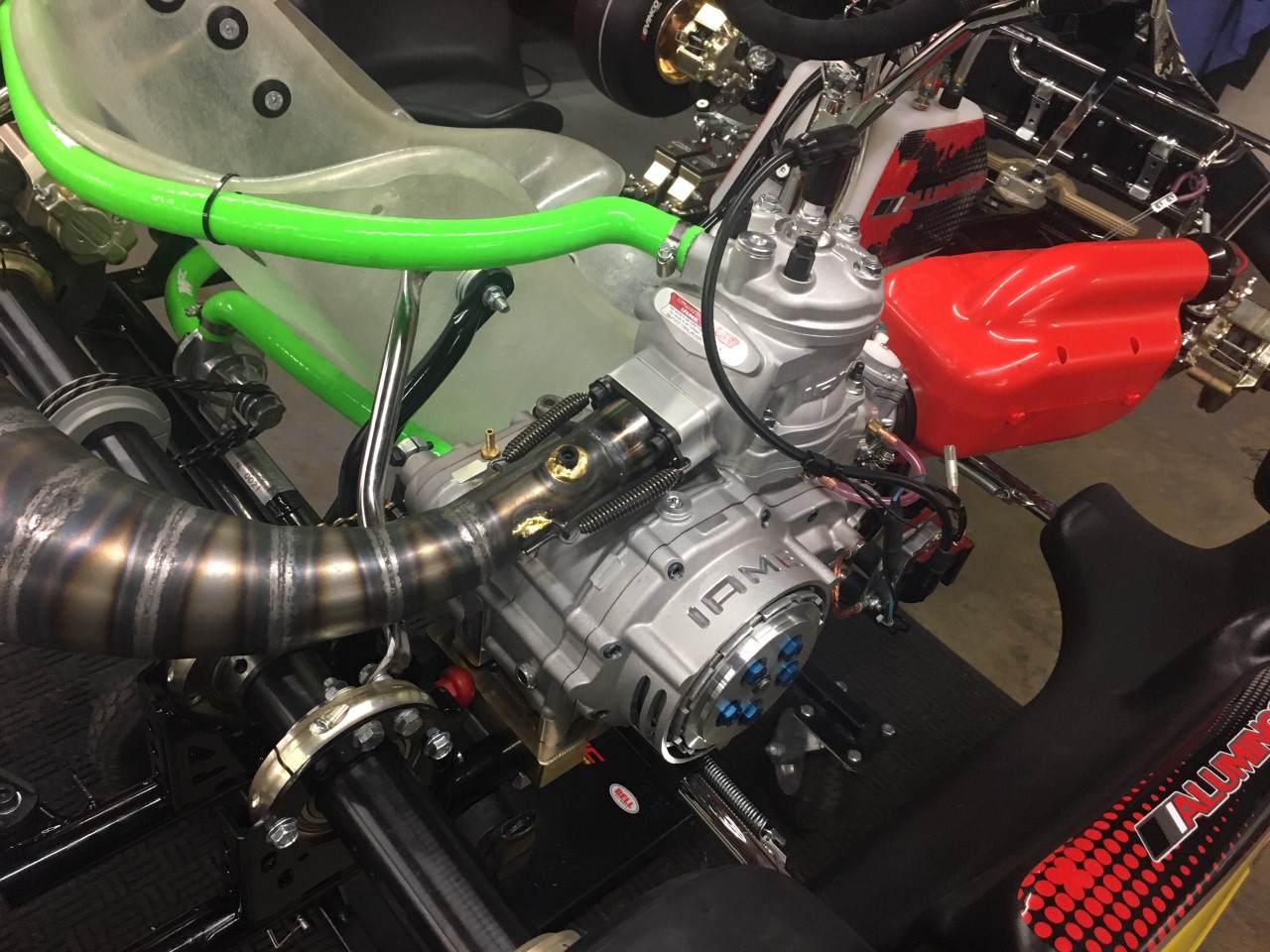

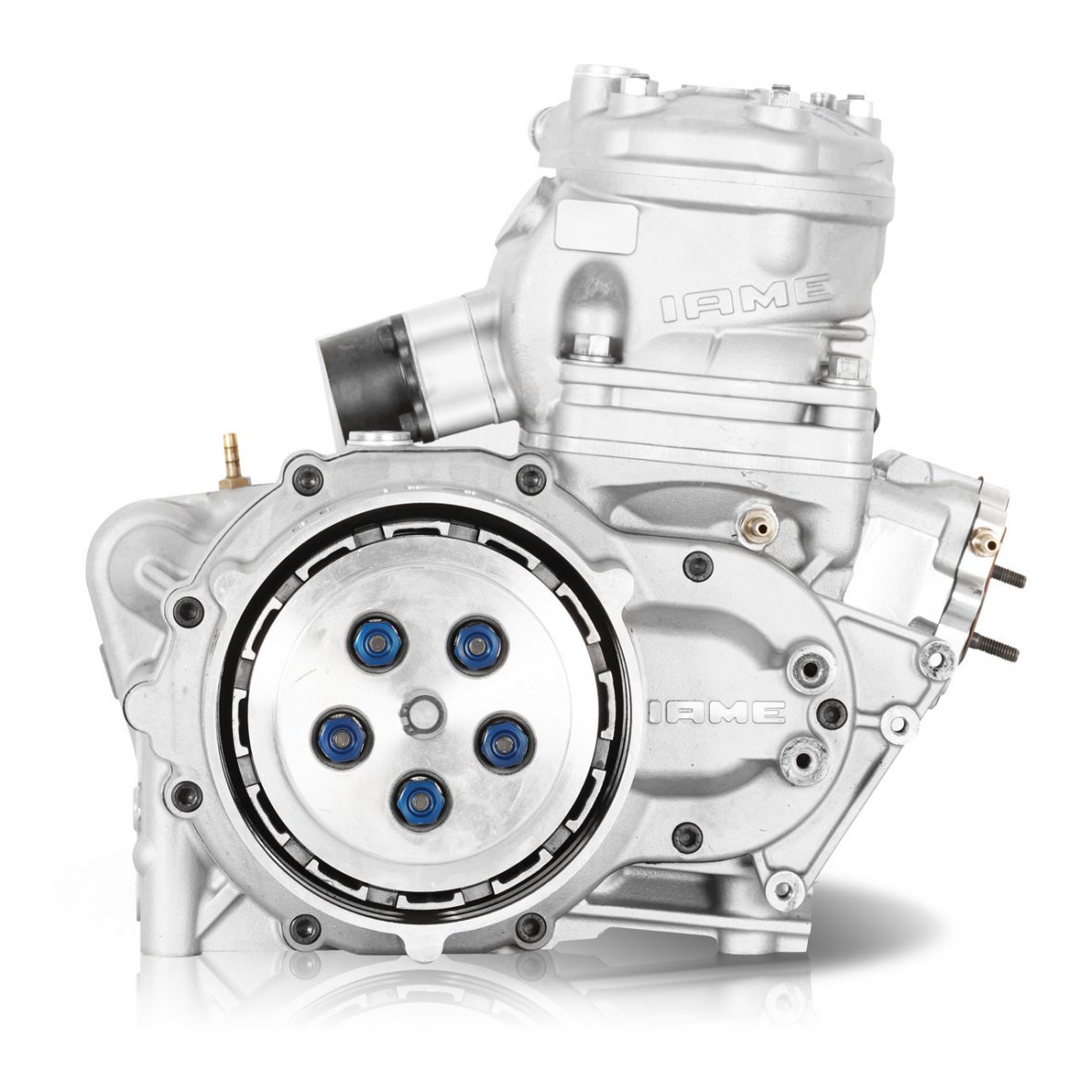

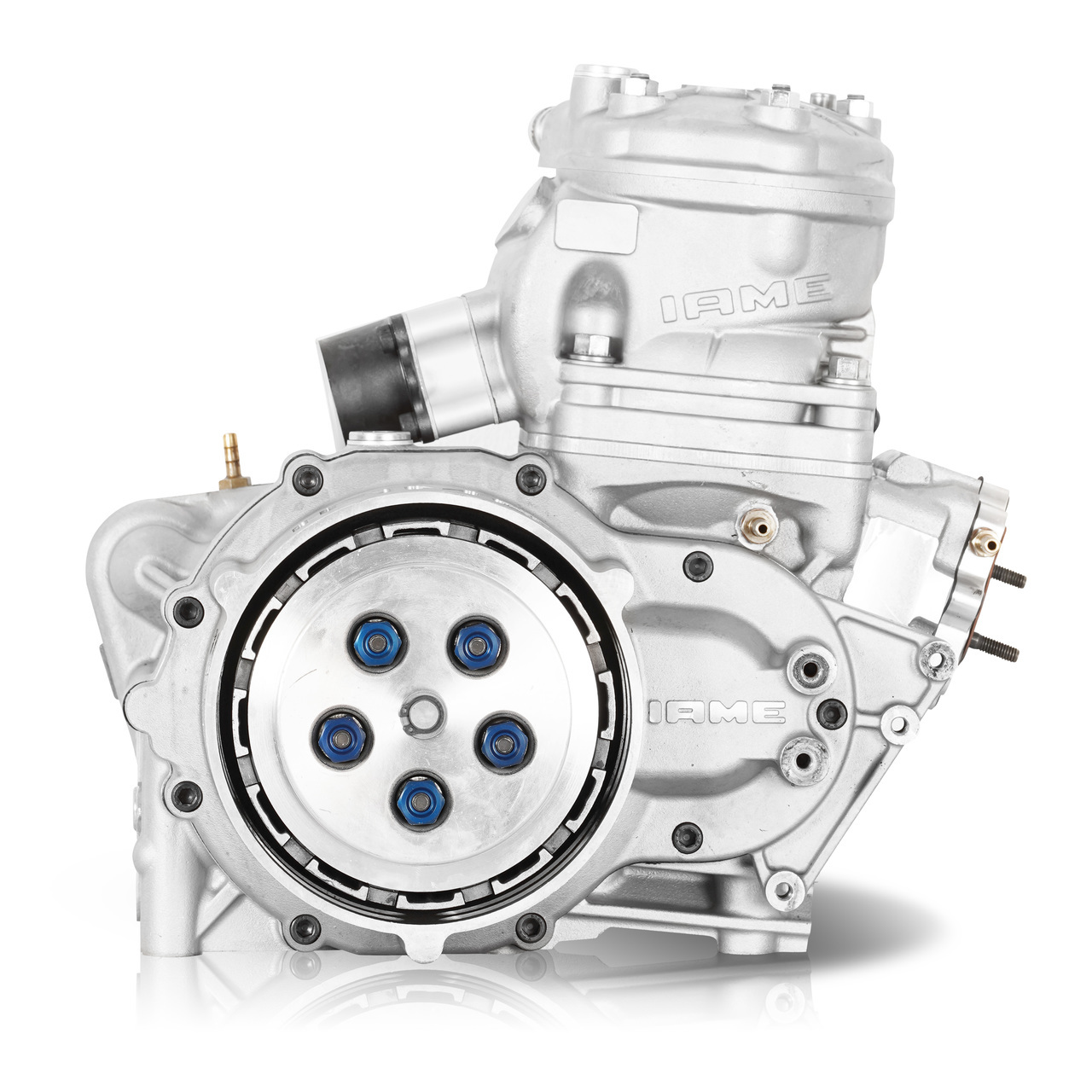

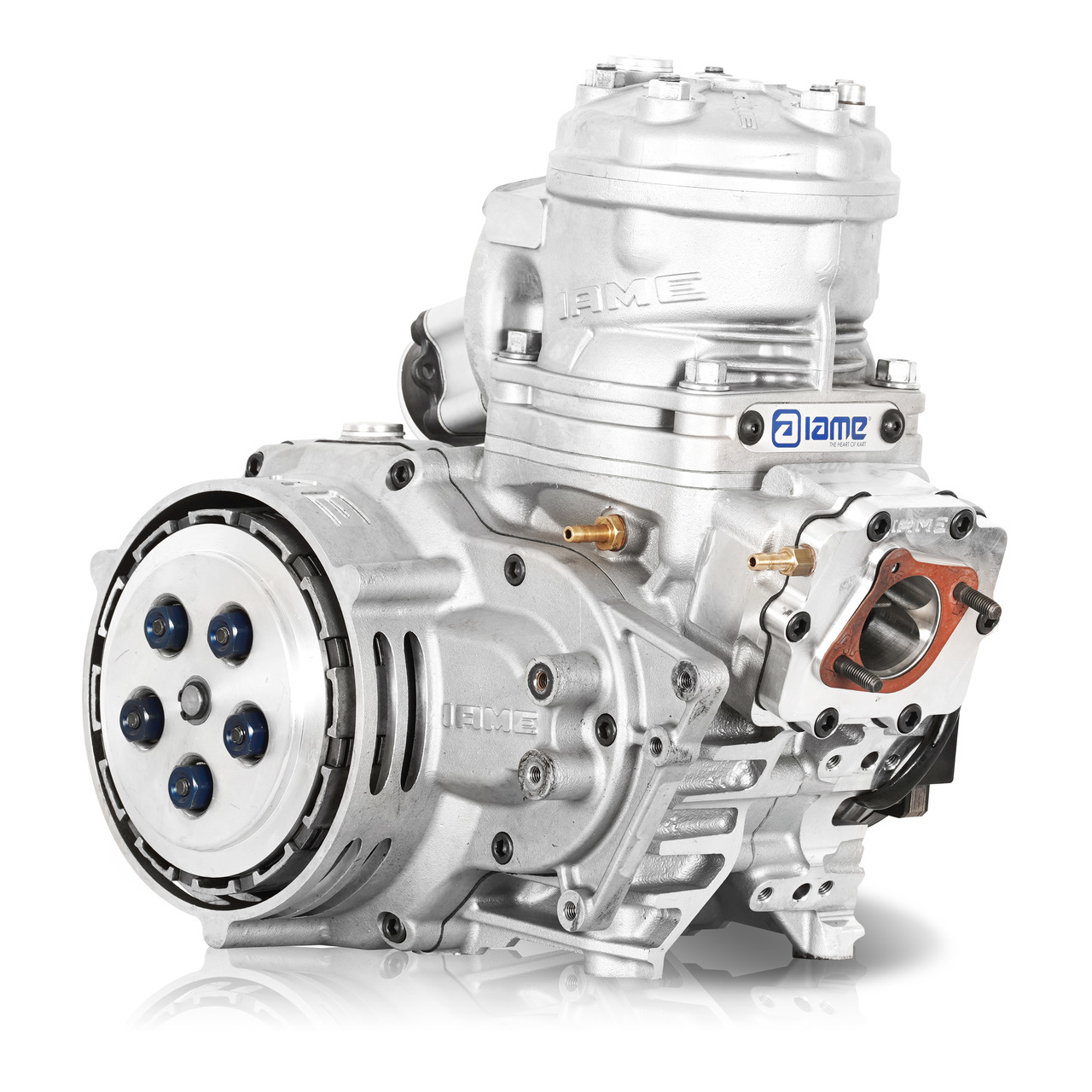

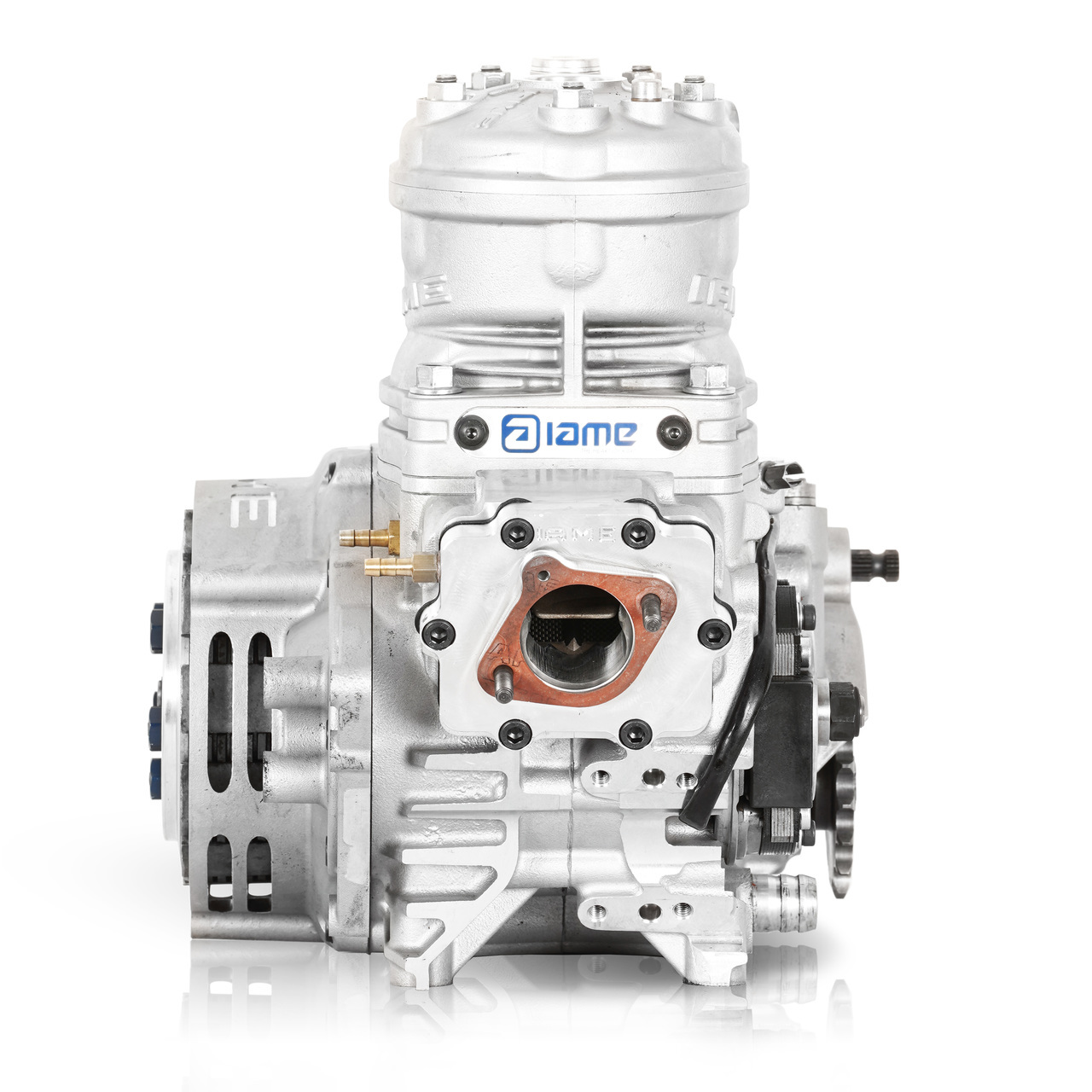

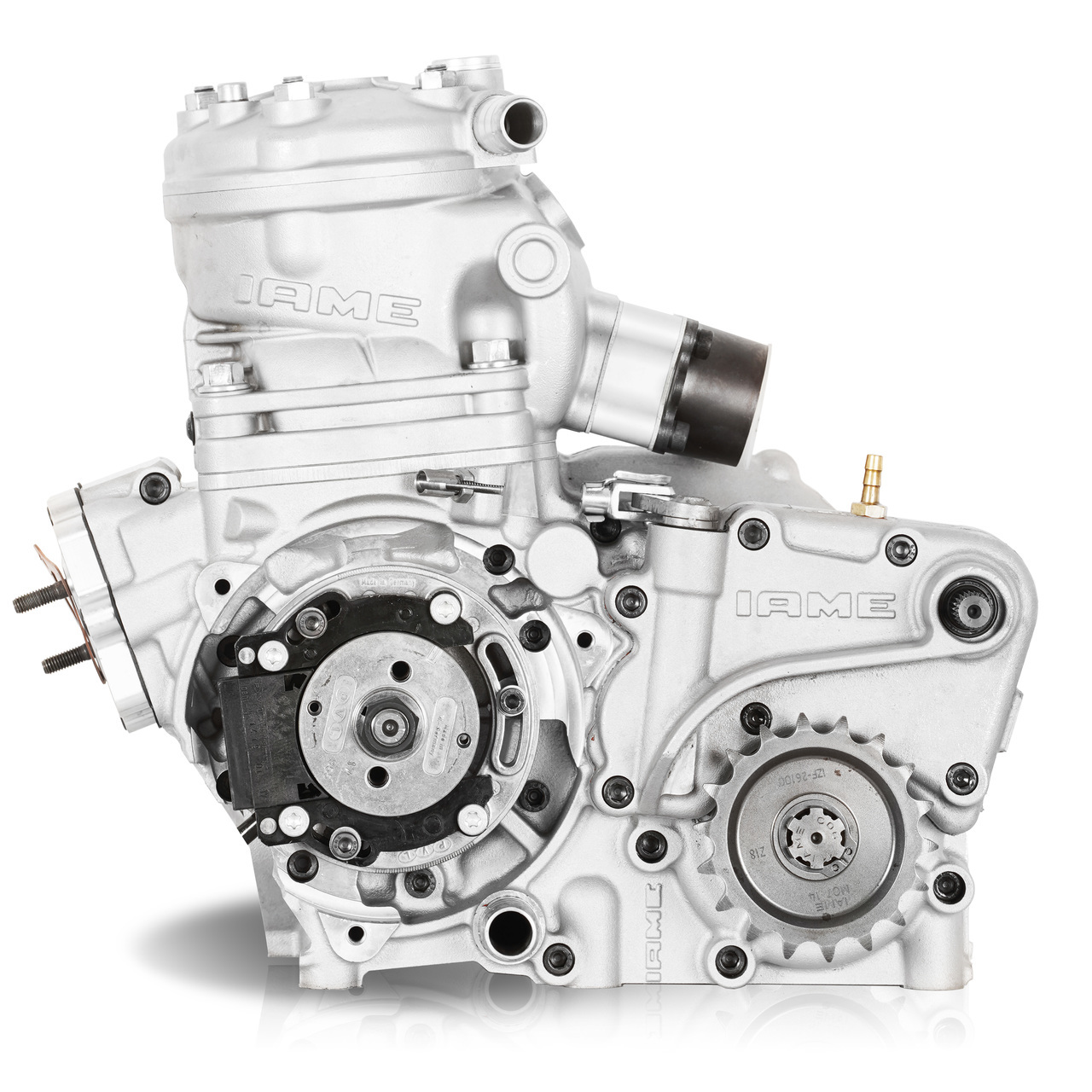

– IAME 175 SSE Engine

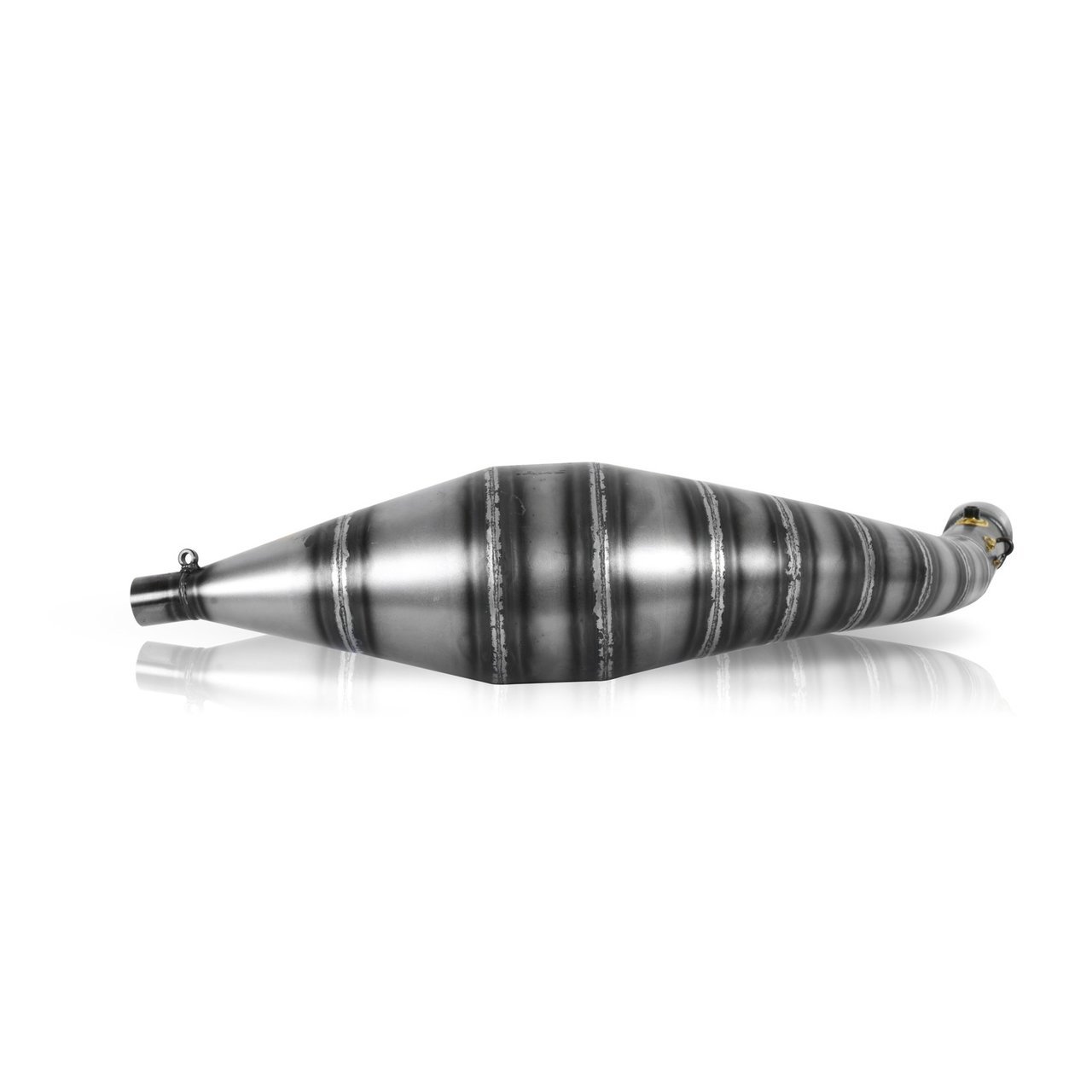

– 175 SSE Tuned Exhaust with U-Bend
– Elto Aluminum Exhaust Silencer
– Aluminum Water pump
– Aluminum Water pump Pulley (with 2x rubber belts)
– Tillotson HB-15A Carburetor
– Righetti Ridolfi ‘Nox’ Racing Air Box, Red
– IAME Aluminum 175 SSE Engine Mount with Butterfly Clamps (fits both 30mm & 32mm chassis)
– IAME 18 tooth Counter Shaft Sprocket

For additional information and instruction:

Or contact us anytime:
951-500-7175
musgraveracing@outlook.com

Technical Specifications
Description: Single cylinder – 2 stroke
Bore: ø 63.90 mm
Max Bore: ø 64.26 mm
Stroke: 54.40 mm
Displacement: 174.46cc
Ports: 5
Inlet system: Reed valve
Lubrication: Oil mixture
Ignition system: Analogical
Transmission: 6 speed gearbox
Cooling system: Water
Starter: Push Start
Carb. Model: HB-15A Tillotson
Max Power: 49 Hp @ 13,000 rpm
Max Torque: 27 Nm @ 12,500 rpm
